NEW PRODUCT UPDATE

    SEAL IP68 UPGRADE

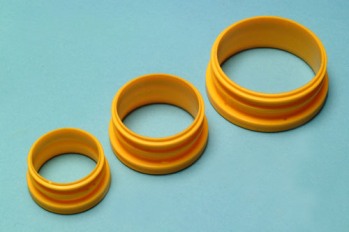

New! Adaptaflex introduces IP68 capability for the Adaptalok system.

For use with all Adaptalok fittings, the new Seal increases the IP rating of the Adaptalok system from IP66 to IP68. The new IP68 Seal makes the most user friendly conduit and fittings suitable for the very highest IP specifications.



FEATURES

3rd Party certified IP68 design
Bright yellow
Available in 6 sizes from 16mm to 54mm

BENEFITS
Complete conduit and fitting protection against water
High visibility
To suit all popular sizes







TECHNICAL SPECIFICATION

Material: Thermoplastic co-polyether-ester.

Ingress Protection:
IP68 (1m water 35mins).
(BSEN60529:1992 inc. amendments 1&2)
When fitted correctly with Adaptalok system.
3rd party certification by ITS (ETL Semko).

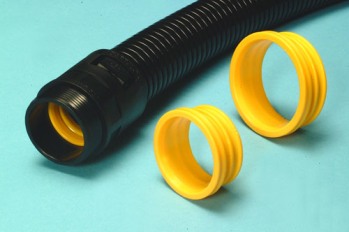

Fitting Instructions: Cut conduit square in bottom of corrugation. Insert seal at angle to conduit, locating ribs in corrugations and push fully home. Push on and twist the Adaptalok fitting, pull to engage fitting clips.




ORDERING DETAILS

  • Select the part number suitable for the conduit size and pitch
  • Available in bags of 10
  • All Seals are suitable for use with standard weight PA / PI / PR conduits from Adaptaflex with Adaptalok fittings
PART NO.
SIZE
PITCH
ALS16/F
16mm
FINE
ALS21/F
21mm
FINE
ALS28/C
28mm
COARSE
ALS32/C
34mm
COARSE
ALS42/C
42mm
COARSE
ALS54/C
54mm
COARSE
